Kraus & Naimer
Main Switches
Pre-configured switches exceeding the requirements of IEC 60947-3, EN 60947-3, VDE 0660 part 107, IEC 60204, EN 60204 and VDE 0113 and meeting the standard on switch disconnectors, main switches and maintenance switches
“ON/OFF-Switches
2, 3, 4, 6 and 8 pole
Changeover Switches
3 and 4 pole”
CATALOGUE LINK 1: https://flippingbook.krausnaimer.com/KN500GB/
CATALOGUE LINK 2: https://flippingbook.krausnaimer.com/KN150GB/
CATALOGUE LINK 3: https://flippingbook.krausnaimer.com/KA-Folder_EN/
KG10
Thermal Current:
lu/lth [A]: 20
Utilization Category (3 x 380 V – 440 V):
AC-23A [kW]: 5.5
AC-3 [kW]: 3.7
KG20-KG100
THERMAL CURRENT
Iu/Ith (A) : 20-100AMPS.
UTILIZATION CATEGORY: (3X 380 V – 440 V)
AC-23A ( KW): 5.5 TO 110
AC- 3( KW): 3.7 TO 75

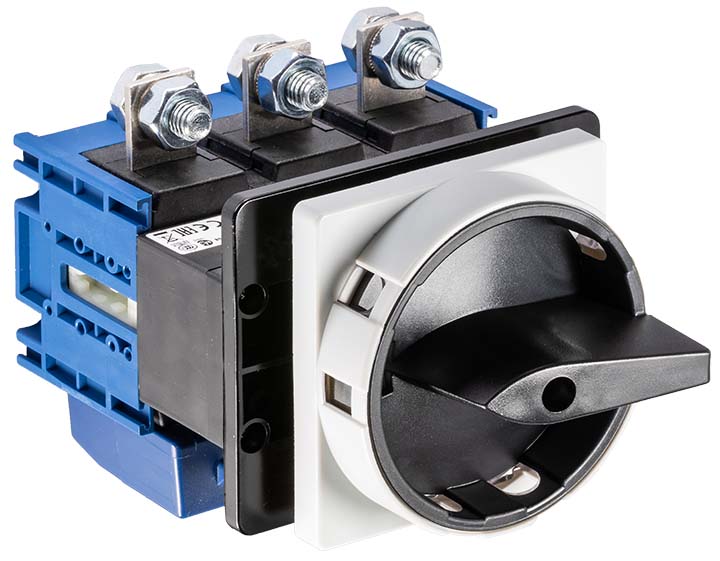

KG127 – KG162
THERMAL CURRENT (KG127/ KG162)
Iu/Ith (A) : 125 / 160 AMPS.
UTILIZATION CATEGORY: (3X 380 V – 440 V)
AC-23A ( KW): 45 / 55
AC- 3 ( KW): 37 /45
KG252 -KG317
THERMAL CURRENT (KG252/ KG317)
Iu/Ith (A) : 250 / 315 AMPS.
UTILIZATION CATEGORY: (3X 380 V – 440 V)
AC-23A ( KW): 90 / 110
AC- 3 ( KW): 55/ 75
C316
Thermal Current:
lu/lth [A]: 315
Utilization Category (3 x 380 V – 440 V):
AC-23A [kW]: 132
AC-3 [kW]: 55
